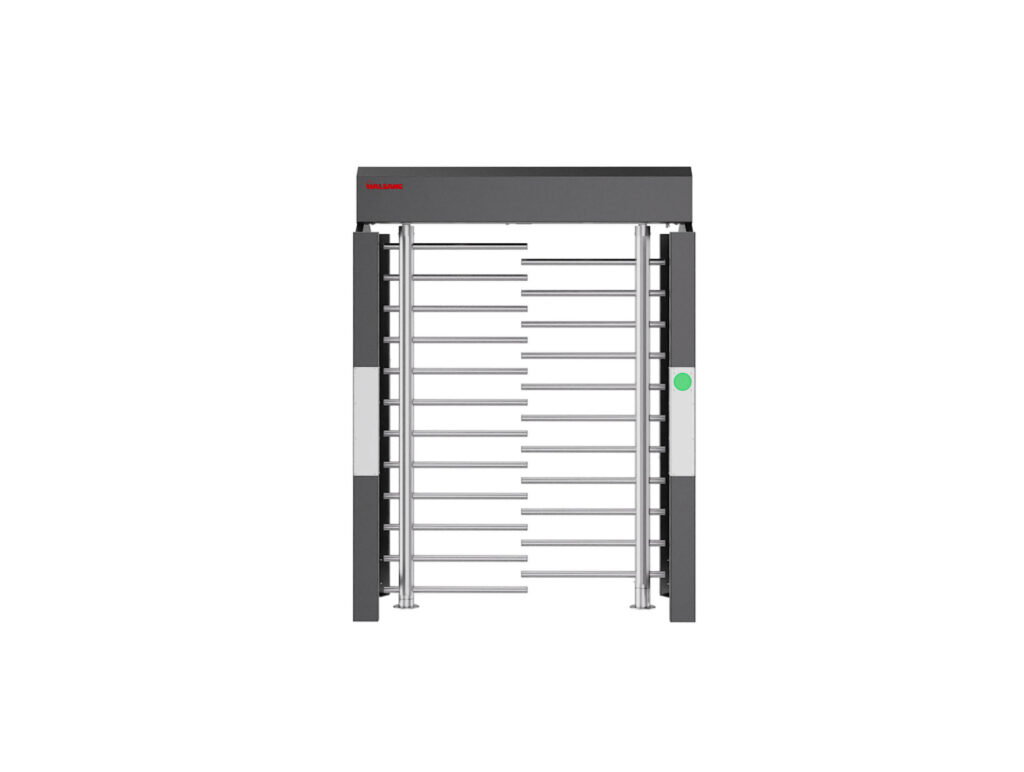

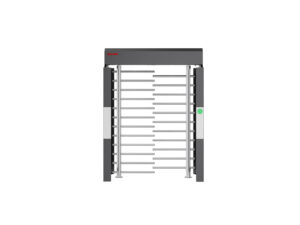

Turnstile IDUN HHTI

Fast and safe
The turnstiles are designed for continuous operation and can be successfully used in areas with High frequency passages. Suitable areas: factories, commercial buildings, harbours etc.
The turnstile is suitable for disabled people etc. Each spindle is operated by an individual motor/mechanism.

Mode of operation
The two-way mechanism enables traffic control in both directions or in a selected direction. The LED pictograms (red cross & green arrow), easily visible and situated at eye level on the frame tube indicate the status of the turnstile (locked/unlocked). The red cross indicates passage closure, the green arrow indicates passage opening. The turnstile mechanism allows smooth entrance/exit and is equipped with a mechanical, as well as a magnetic lock for optimal security. The spindle is motorized, ensuring smooth entrance/exit for the user.

• Turnstile mechanism is made of high quality steel and equipped with high quality bearings. Brake/locking system has a very short response time (from 0.03 to 0.12 sec). In the event of a power failure, the mechanism will be automatically unlocked to allow safe exit from the premises, the entrance is locked to prevent entry.
• The control (H104) has a wide range of options allowing various individual requirements.
• Easy access for service and maintenance in the cabinet.
• Illumination of passage as standard (controlled by a light sensor).
• Stainless steel panels for access control equipment- allows to make dedicated cutouts.
• Pictogram (red/green) as standard on both sides of the turnstiles frame tubes at eye level.
• Prepared for external card reader.
• Polished Stainless steel spindles (1.4301).
• Stainless steel + RAL-coating cabinet as standard (even in case of HDG execution on the Turnstile)
• Cage in HDG as standard
• 15-20 passages/min.

• Overclimbing protection.
• Fencing connection on post.
• Roof in polycarbonate “Curved”.
• Roof in steel “Flat”.
• Drain system for the roof “1 or 2 sided”.
• Powder coated cage in RAL colors.

Product Flyer
